Description

***Call for Consultation***

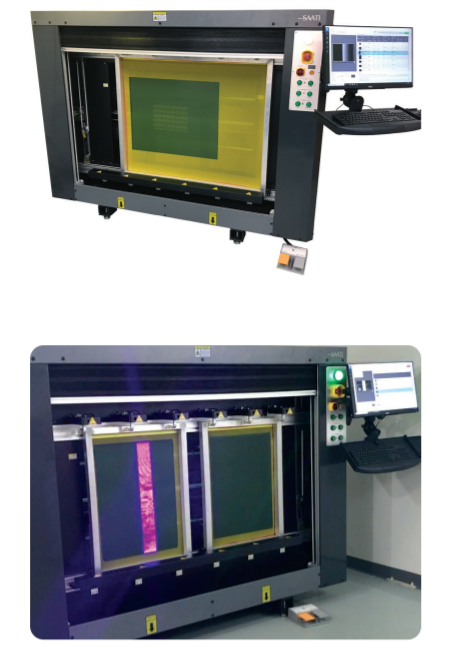

Self-contained, super high efficiency direct laser computer to screen Image & Exposure unit, operated by PC with optional RIP.

APPLICATIONS:

Designed to efficiently image and expose one screen up to 104 x 170 cm/41 x 66.9” or two screens up to 58 x 78 cm/23x31” without vacuum or film positives.

CHARACTERISTICS:

• Vertical glassless design with safety shutter

• 96 laser array capable of 2540, 1693, 1270, 1016, or 847 DPI

• Exposes all emulsions and stencil films

• Easy to use software, compatible with many RIP programs

• Utilizes 1-bit TIFF file format

FEATURES/BENEFITS:

• Very high resolution CtS exposure capable of reproducing the most demanding image types

• Double screen output by imaging & exposing two screens at once

• Digitally process all types of PC & Mac design files in house with no film positives and the powerful workflow software allows multiple image placements across one or two screens to further enhance productivity

• No consumables and low power consumption for minimized costs

• 10,000+ hour lamp life and easy, low cost maintenance

SPECIFICATIONS:

• Maximum Image Size: 60 x 120 cm | 23.5” x 47”

• Maximum Frame Sizes: 1 screen up to 104 x 167 cm | 41 x 66” or 2 two screens up to 58 x 78 cm/23x31”

• Machine Dimensions: 220 x 58 x 163 cm | 86.6 x 22.8 x 64”

• Weight: 850 kg | 1874 lbs

• Compatible with 110V or 220V input

• One Year Warranty
