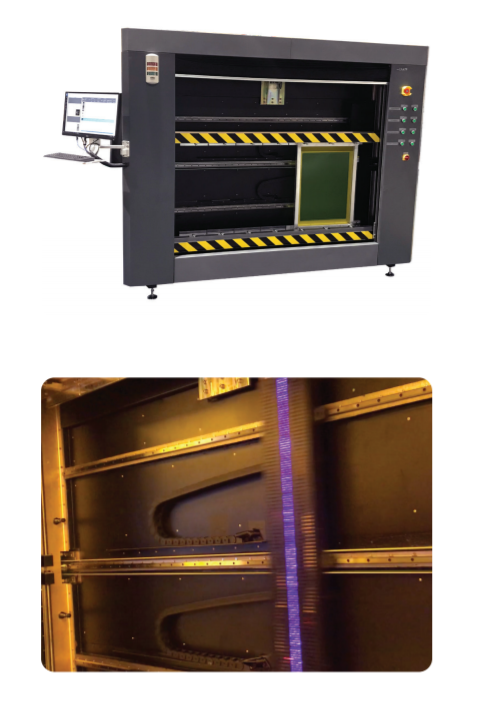

Self-contained, high efficiency direct laser computer to screen Image & Exposure unit, operated by included PC with optional RIP.

APPLICATIONS:

Designed to efficiently image and expose screen printing frames up to a maximum size 141 x 202 cm/ 55.5 x 79.5” without vacuum or film positives

CHARACTERISTICS:

• Vertical glassless design with safety shutter

• 160 laser array capable of 2540, 1693, 1270, 1016, or 847 DPI

• Exposes all emulsions and stencil films

• Easy to use software, compatible with many RIP programs

• Utilizes 1-bit TIFF file format

FEATURES/BENEFITS:

• Very high resolution CtS exposure capable of reproducing the most demanding image types

• Double screen output by imaging & exposing two screens at once

• Digitally process all types of PC & Mac design files in house with no film positives and the powerful workflow software allows multiple image placements across one or two screens to further enhance productivity

• No consumables and low power consumption for minimized costs

• 10,000+ hour lamp life and easy, low cost maintenance

SPECIFICATIONS:

• Maximum Image Size: 100 x 150 cm | 39.4 x 59.1”

• Maximum Frame Sizes: 1 screen up to 140 x 200 cm | 55 x 79” or 2 two screens up to 63,5 x 91,5 cm | 25 x 36”

• Overall Dimensions: 260 x 68 x 200 cm | 102.4 x 26.8 x 78.7”

• Weight: 1200 kg | 2646 lbs

• Compatible with 110V or 220V input

• One Year Warranty
